"The part is not easy to install as you have to flex it until it almost breaks before you can get the side pins in their holes"

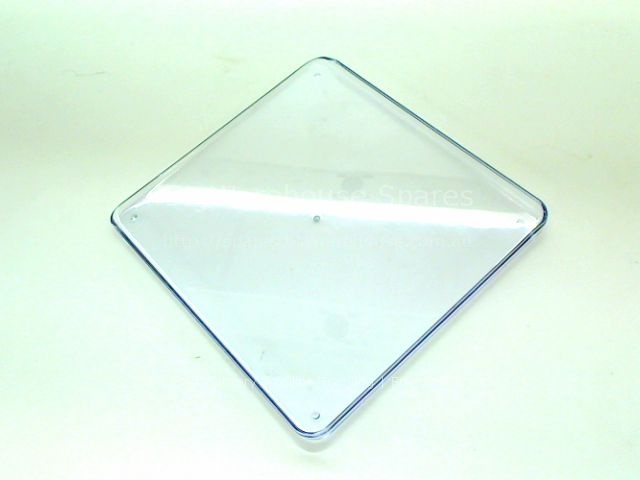

LID CHILL ROOM LARGE TF70
Location Ref: 42
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
Installation
John
NSW
"The parts of the old door fell out so the insertion of the new one was easy."
Ross
QLD
"Slight bend of item required to fit."
Paul
NSW
"Removed the chill tray for easier access, inserted one end into the right hand side hole, slowly bent the door until it could be inserted into the left hand side hole hole, job done. easier than expected"
Michael
NSW
"I put the tab of the chill lid first into the fridge door hinged side and then bending the lid slightly eased the other side in. it was surprisingly easy as id read elsewhere that bending the lid almost to breaking point was required."
Steve
NSW
"Our electrician installed the part easily"
John
ACT
"Needs to be fitted gently as the chill room flap is somewhat fragile and might easily snap."
Joseph
SA
"Ok"
Rebecca
NSW
"Got it fitted as i have a disability it is fiddly as pandora requires flexing to get into the clips"
Mike
QLD
"Popped in"
