Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
Ref:
NUT ø 1/8"
HOSE CLAMP 16-25

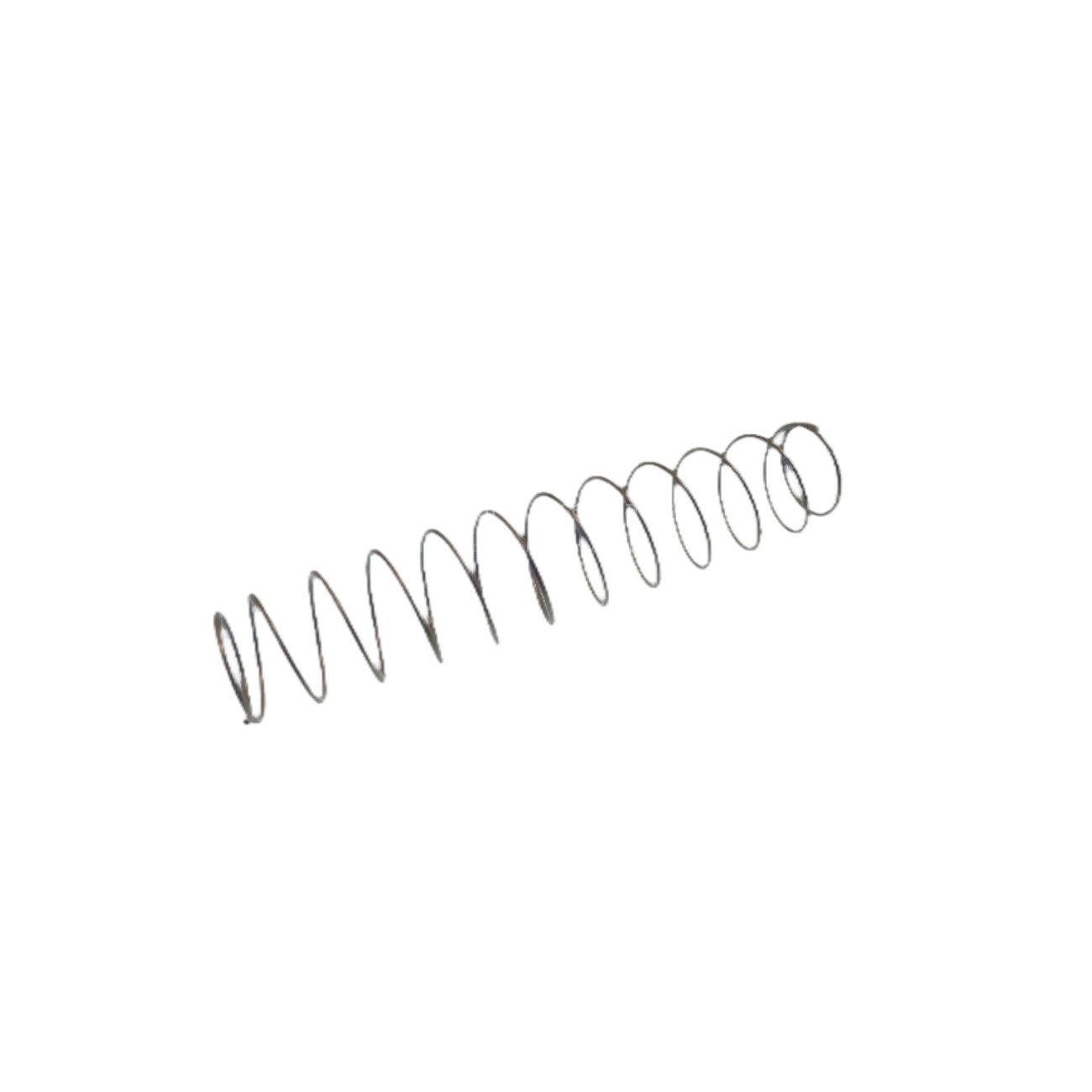

INTERNAL FOOT SPRING 2005
HIGH FOOT EXTENSION 2005 D.66 H=80
HIGH FOOT EXTENSION INSERT ES 20 L=70

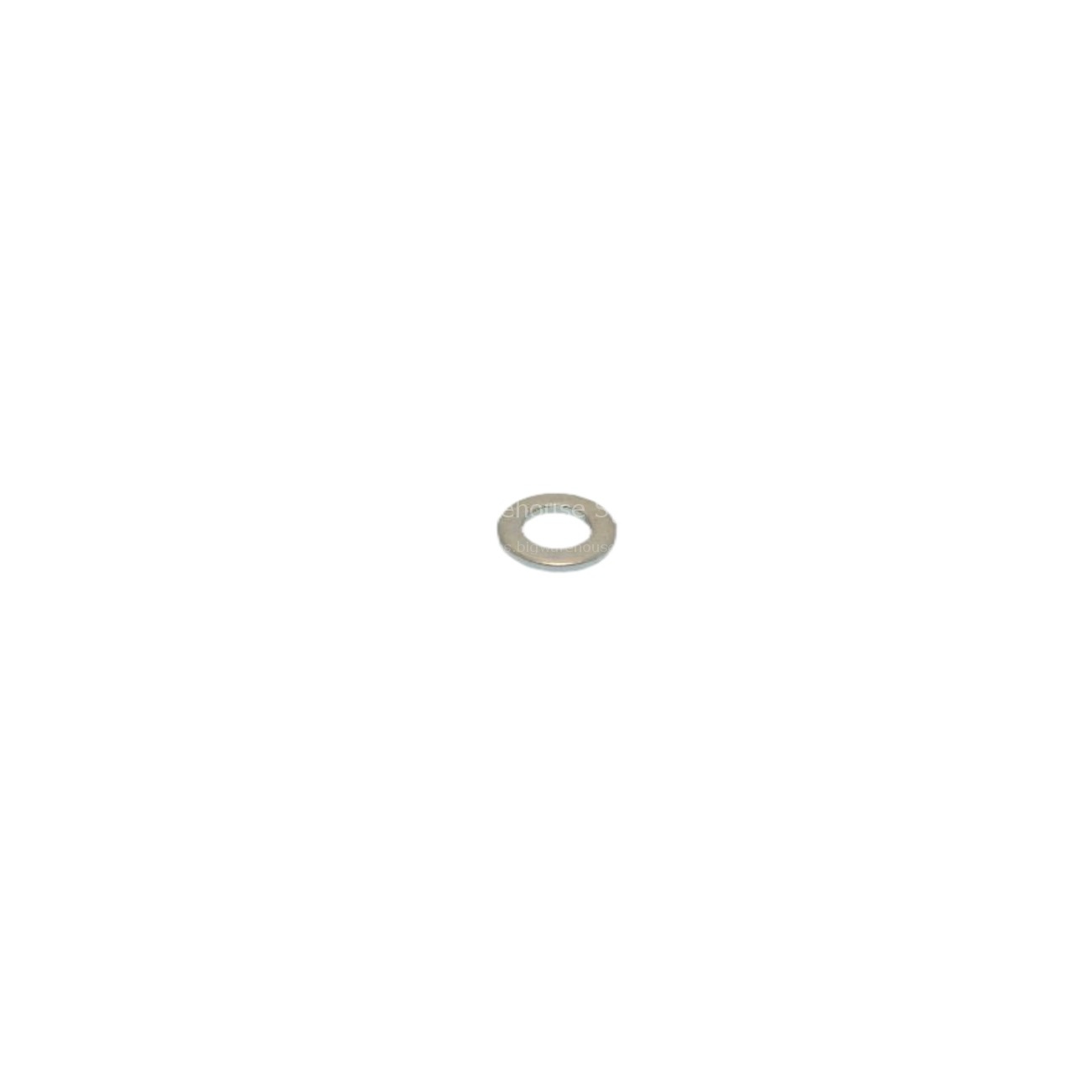

GALV WASHER AQ D10X21X2
SCREW ST. STEEL M4x10 TSP TCR DIN965
NICKEL PLATED CONTROL UNIT SUPPORT PIN
CENTRAL LOCK VIP S/S NICKEL PLATE L=35
SCREW STAINLESS STEEL M3x8 TCEI ISO 4762
COFFEE BOILER D90 L=270 ST./STEEL "TALEN
STEAM BOILER D115 L=270 ST./STEEL "TALEN
CONTROL BOX LOCK
NUT M6 W/ WELDED GALV WASHER
T-FITTING ø 1/4"F-1/4"F-1/4"M
PLUG 30A 250V USA L630P
SOLENOID VALVE 3-WAY ø 1/8" 230V
KNURLED WASHER DIAM 6
FITTING STRAIGHT ø 1/8"M - 4 mm
ELECTRIC CABLE 3X4 2m 450/750V
